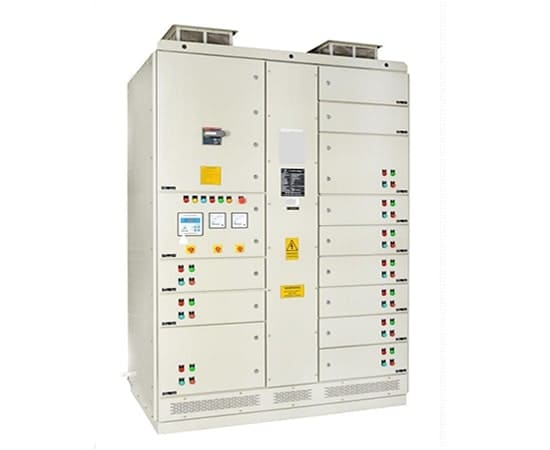

Automatic Power Factor Correction Panel Manufacturer in India
| Rated voltage | 380 / 400 / 415 / 440 V AC | -- | ||
| Rated frequency | 50 / 60 Hz. | -- | ||
| Rated output | 8 - 1000 KVAr | Other Ratings from 1000 - 2000 KVAr are available on request | ||
| Configuration | Delta / Star floating / Star grounded. | -- | ||
| Number of steps | 1 to 16 | -- | ||
| Step distribution | Equal / Binary / unequal. | -- | ||
| Detuning reactor | 0.2%, 1%, 5.67%, 6%, 7%, 14%. | Detuning reactors are provided as per the customer's specifications | ||
| Reactor winding | Copper / Aluminum strip / Aluminum foil. | Winding conductor is provided as per the customer's specifications | ||
| Switching device | Thyristor switched modules / Capacitor duty contactor. | Capacitor switching module is as per customer's specifications | ||
| Panel type | Standard / Modular — Partly compartmentalized / Compartmentalized. | -- | ||
| Branch protection | HRC fuse / High speed fuse for Semiconductor device (TSM) protection / SFU / MCCB. | -- | ||
| Capacitors | Resin filled / Gas impregnated / APP — Oil impregnated. | -- | ||
| Protections | Over/under voltage, Short circuit, Earth fault, Over temperature | -- | ||
| Controller | 1. BR 4000 / BR 6000 series for single CT sensing application (balanced load). 2. BR 5000 / BR 7000 series for three CT sensing application (unbalanced load). |
-- | ||
| Measuring CT | Single CT for BR 4000 and BR 6000 series. Three CTs for BR 5000 and BR 7000 series. |
-- | ||
| Data logging | By controller internal memory in BR 5000 series. | -- | ||
| Ingress protection | IP2X ... IP5X. | -- | ||
