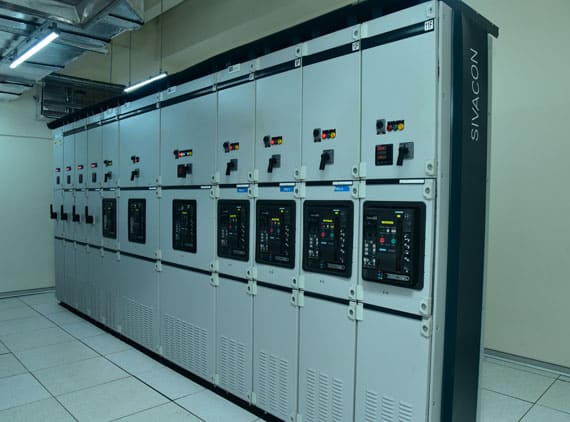

PDU WITHOUT BCPM
| Features | Scope |
|---|---|
| Capacity Range | Up to 600kVA |
| Operating Voltage | 415:415 ( Or As Per Required Voltage Ratio) |
| Incomer | Isolator / MCCB /ACB/HRC FUSE |
| Metering | Multifunction / Load Manager / LED/LCD/Intelegent highend Power Quality Analysers |
| Transformer Configuration | Delta-Star (Dyn11), Delta-ZigZag Star (Dyn11) |
| K-Rating | K13,K20 Prefered |
| Electrostatic Shielding | Copper/Brass - Foil/Mesh Between The winding |
| Temperature Monitoring | Temp meter |
| Outgoing | Isolator / MCCB /ACB/HRC FUSE |
| Input-output Status/Indication | ON/OFF/TRIP Solid State Indication , PFC As Requied |
| Distribution Details | MCBs D Curve 1/2/3/4 Poles |
| Hot Swap Feeders | Hot Swap Arrangement Of feeders |
| Distribution Construction | With suitable rated Solid copper Bus Bar |
| Cooling | Air Natural < 60kVA < Forced Air Cooling |
| Cooling Mode | Suction / Throw |
| Surge Arrestor | SPD/TVSS Class C , Class B+C , Class B ( Type 1 , type 2) |
| Maintenance Bypass | Manual Change Over Switch Fpr Safe Bypass |
| Earth Fault/Leakage Detection | Through EFR Relays |
| Soft Starters ( Inrush Current Limitor) | ** Manual / Automatic |
| Panel Enclsoure | CNC Machined BOX Type / Load Bearing Member Type / Compartmentalized Constructions |
| Ingress Protecion | Up to IP 40 |
| Fan Fail Indication | Fan fail Indication and Hooter alarm i.e Audio-Visual |
| Bus Bars | Copper / Aluminum |
| Power Cables | Panel Power harness |
| Branch Power Monitoring | BCPM - Modbus RTU/Eathernet/TCP-IP |
| HMI | Suitable LCD Screen To Display BCPM Parameters |
| Software | Standalone Software |
Used in Application:
-
Data Centres
-
At UPS Output
-
Power Conditioning
