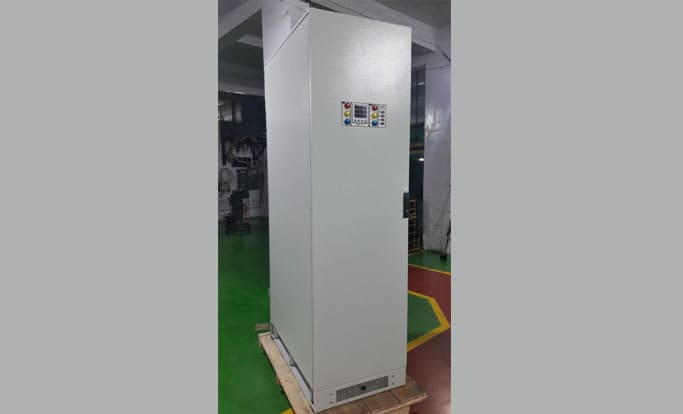

Isolation Transformer Cubicle Manufacturer in India

Isolation Transformer Cubicle Manufacturer in India

Features Scope
Capacity Range Up to 2000kVA ( 2MVA)
Operating Voltage 415:415 ( Or As Per Required Voltage Ratio)
Main Incomer Isolator / MCCB /ACB/HRC FUSE
Input Phase Sequence Correction ( IPSC). Auto Phase Seuence Correction With MCCB / Cotactor.
Input Auto Source Selector (IASS). Auto Cahange Over Loagic With MCCB/ Contactor.
Voltage Monitoring VMR Relay
Metering DPM/Multifunction / Load Manager / LED/LCD/Intelegent highend Power Quality Analysers.
Transformer As Above Clause I Specs
K-Rating As Above Clause I Specs
Temperature Monitoring Temp meter
Main Outgoing Isolator / MCCB /ACB/HRC FUSE
Input-output Status/Indication ON/OFF/TRIP Solid State Indication , PFC As Requied.
Cooling Air Natural <60kVA < Forced Air Cooling
Cooling Mode Suction / Throw
Surge Arrestor SPD/TVSS Class C , Class B+C , Class B ( Type 1 , Type 2)
Maintenance Bypass Manual Change Over Switch Fpr Safe Bypass
Earth Fault/Leakage Detection Through EFR Relays
Soft Starters ( Inrush Current Limitor) Manual / Automatic
Panel Enclsoure CNC Machined BOX Type / Load Bearing Member Type / Compartmentalized Constructions
Ingress Protecion Up to IP 42
Fan Fail Indication Fan fail Indication and Hooter alarm i.e Audio-Visual
Over Temp Alarm OT Alarm as well as Indication i.e Audio-Visual.
Bus Bars Copper / Aluminum
Power Cables Panel Power harness

Note - Being Indoor application we recommend to go with lesser IP like IP-20 for better thermal performance

Used in Application:

  • Data Centres
  • At UPS Output
  • Power Conditioning
